MP220-SF32 RF Test Probe
    发布时间: 2017-02-26 18:09

MP220-SF32 RF Test Probe can replace for the imported MS-180-HRMJ-1 product, excellent performance, longer life, low VSWR, Insertion Loss.

Features:

1. Wide Frequency Range

2. Ultra low Insertion Loss and Return Loss

3 Excellent Electrical Properties



Application:

1. Can replace for the imported MS-180-HRMJ-1 test head

2. RF terminal signal test



Electrical Performance:

Frequency Range: DC-6GHz

Mating Cycles>20K

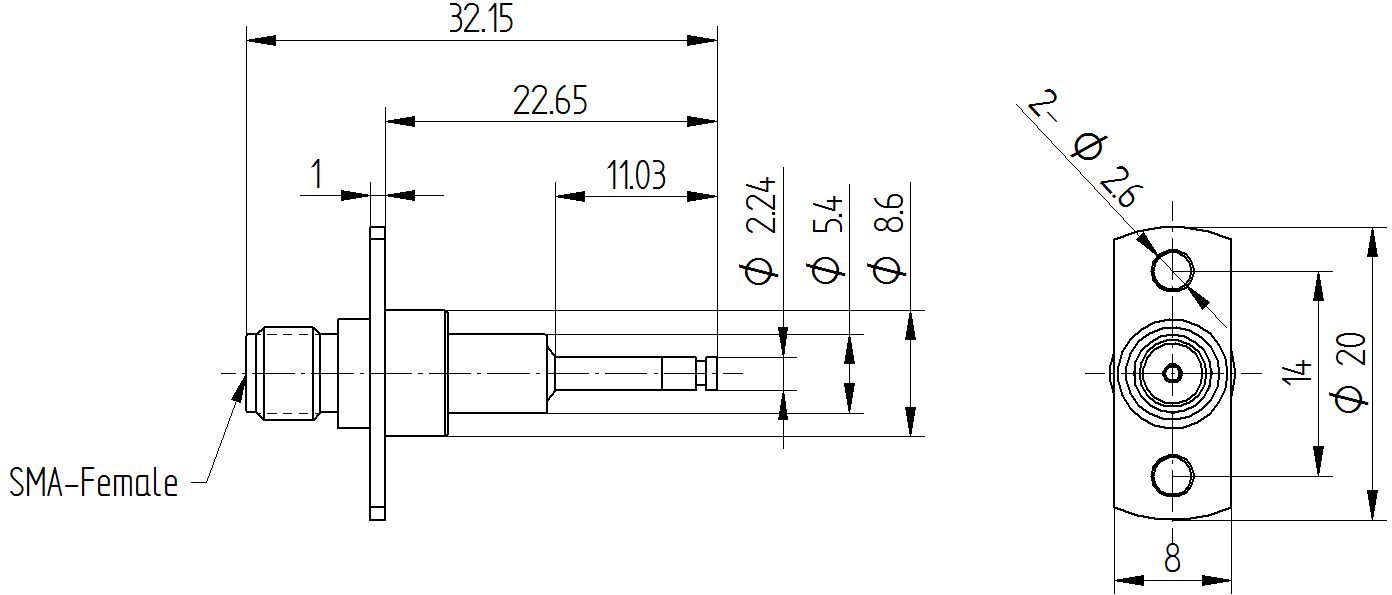

Mechanical Dimensions:

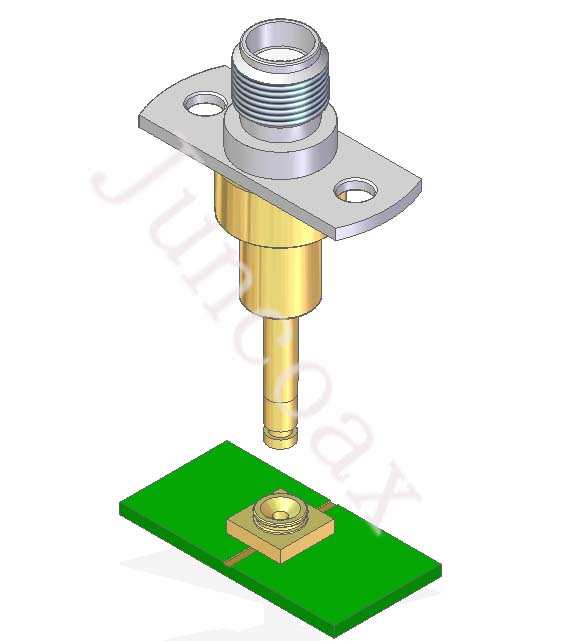

Application Scenario:
